800KG - 5000KG cold rolled steel heavy duty racking with Corrosion - protection
Quick Detail:
1 material: cold rolled steel
2 Finish: spray paint
3 Anti-rust, Corrosion-protection
4 Forklift works
5 Easy to assemble and dispatch
6 capacity 800kg to 5000kg per level, pallet or box stock
Specifications:

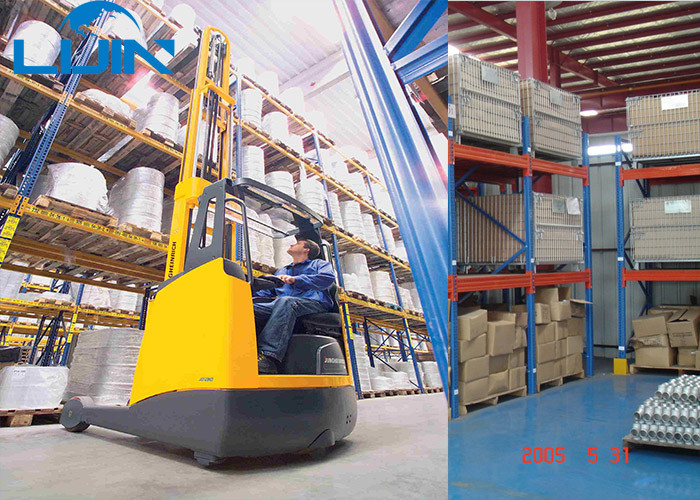

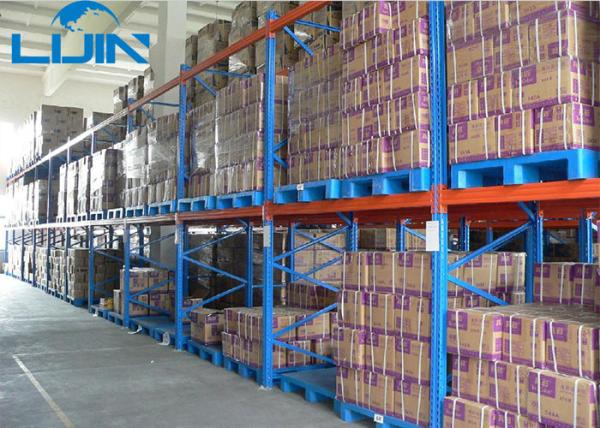

Heavy duty pallet rack, comes with upright frame, beam, support bar,loading capacity from 800kg to 5000kg per layer, upright frame height 2000 to 12000mm, forklift as normal work tools;
it is good option to warehouse storage system. Special stock by pallet as plastic pallet, wood pallet, even steel pallet.
| Load Capacity & Dimension | Loading capacity: 800-6,000 kgs/beam level |
| Height: 1,000-11,000mm |
| Depth: 400-1,500mm |
| Length: 1,500-3,300mm |
| Specail sizes also avaiable to specific storage needs |
| Main Parts Specs | Upright section:80*60*1.5/2.0mm 90*65*1.5/2.0mm, 100*70*2.0/2.5mm, 120*95*2.0/2.5mm ect |
| Box beams section: 80*45mm, 100*45mm, 120*45mm, 140*45mm,160*45mm,180*45mm etc. |
| Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components. |
| Material | High-quality steel,Q235 |
| Finish | High-quality Powder Coating Finish |
| Quick Delivery | Within 25 days for ordinary order quantity. Big production capacity allow us in a position to make quick delivery. |
| Certification | AS4084 |
Competitive Advantage:
We are a renowned company engaged in manufacturing of a precision engineered range of rack. These racks provide the solution to use the existing overhead space, thus saves the cost of conventional building expansion. The racks offered by us are prefabricated and custom-designed to suit the requirements of our clients. These are offered to our clients at competitive prices.
