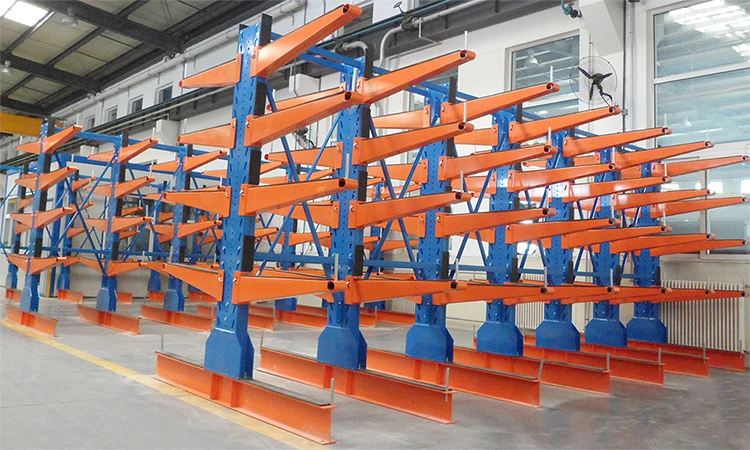

Components
Cantilever rack is made up of upright, arm, bracing, and base.Optional parts are support,guide rail etc.
You may have something important from following table.
| Rack Type | cantilever rack |
| Model | HXB | L | ≤100kgs/arm |
| M | 100~500kgs/arm |
| H | 500~1000kgs/arm |
| XH | ≥1000kgs/arm |
| Access Style | flexiable |
| Structure | knock down or assembled,welded structure available |
| Forklift Asile | around 3200mm,depends on customer's forklift parameter |
| Load Capacity & Dimension | Load capacity | 100~1500kgs/arm |
| length | 500mm~2000mm |
| depth/width | 700mm~2500mm |
| height | ≤9000mm |
| level | ≥2 |
| Components | core components | upright, arm, base, bracing |
| optional components | spacer,wire mesh decking,board,top tie,goods support, protector, etc. |
| Core Components Specification | upright section | face | 200mm, 300mm, 350mm |
| adjust step | 100mm,140mm |
| arm section | base height | 60mm,80mm,100mm, 120mm, 140mm,160mm,180mm,200mm, 220mm |
| width | 55mm,60mm,90mm,100mm,150mm |
| thickness | 1.5mm,2.0mm,205mm, 3.0mm |
| Material | Q235(ss400) |
| Finish | Epoxy resin electrostatic spraying(powder coating),hot-dip galvanized |
| Coating thickness | no less than 60um for average thickness for powder coating |
| Color | ral5015(sky blue),ral5005(signal blue),ral2004(pure orange),ral1003(signal yellow),ral7035(light grey)
Customized colors are available when order above 2*40gp containers |
Cantilever racking for long wooden box product storage

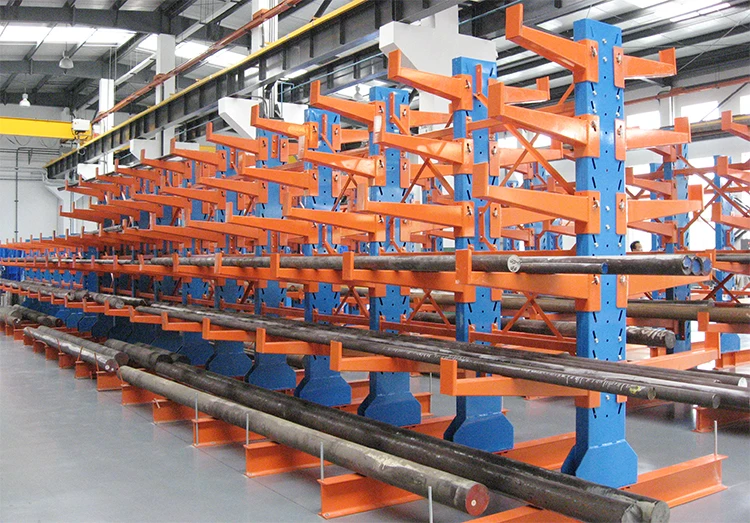

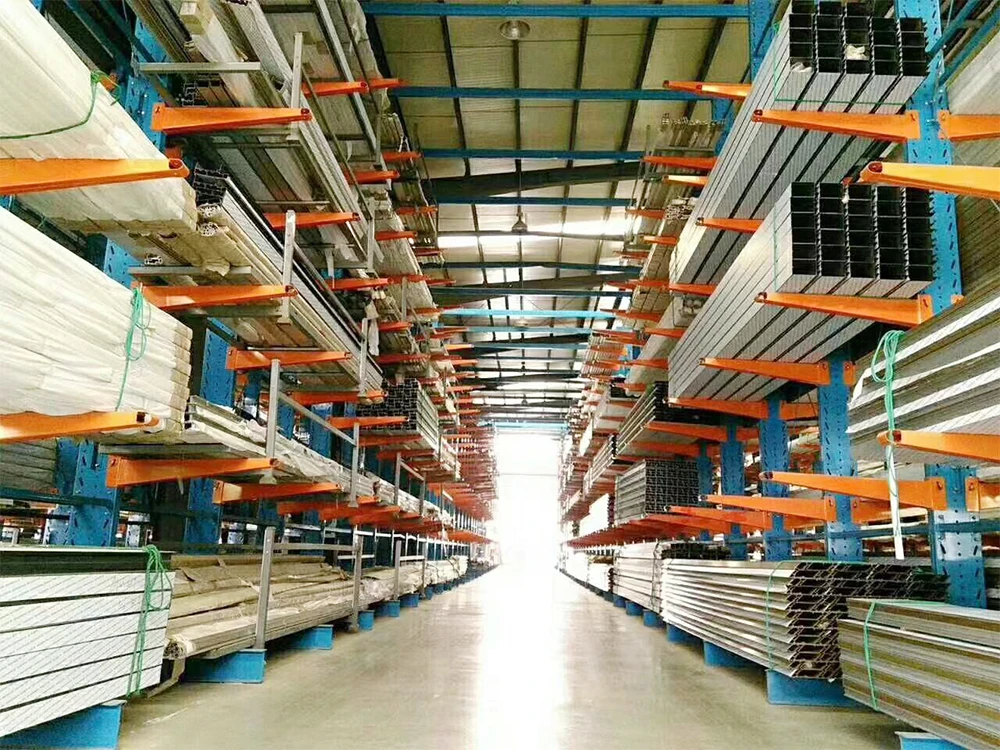

Cantilever racking for steel bar storage
Cantilever racking with rubber pad on the arm for product that need protection.

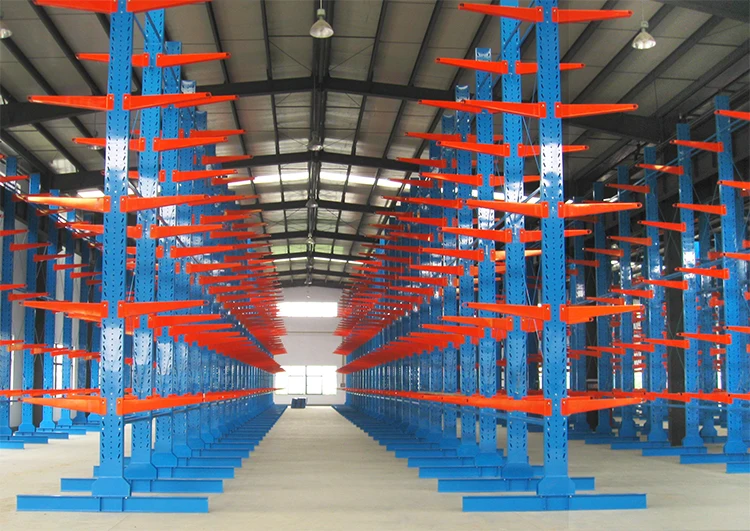

6 layer storage cantilever racking with 5 arm layers with high height

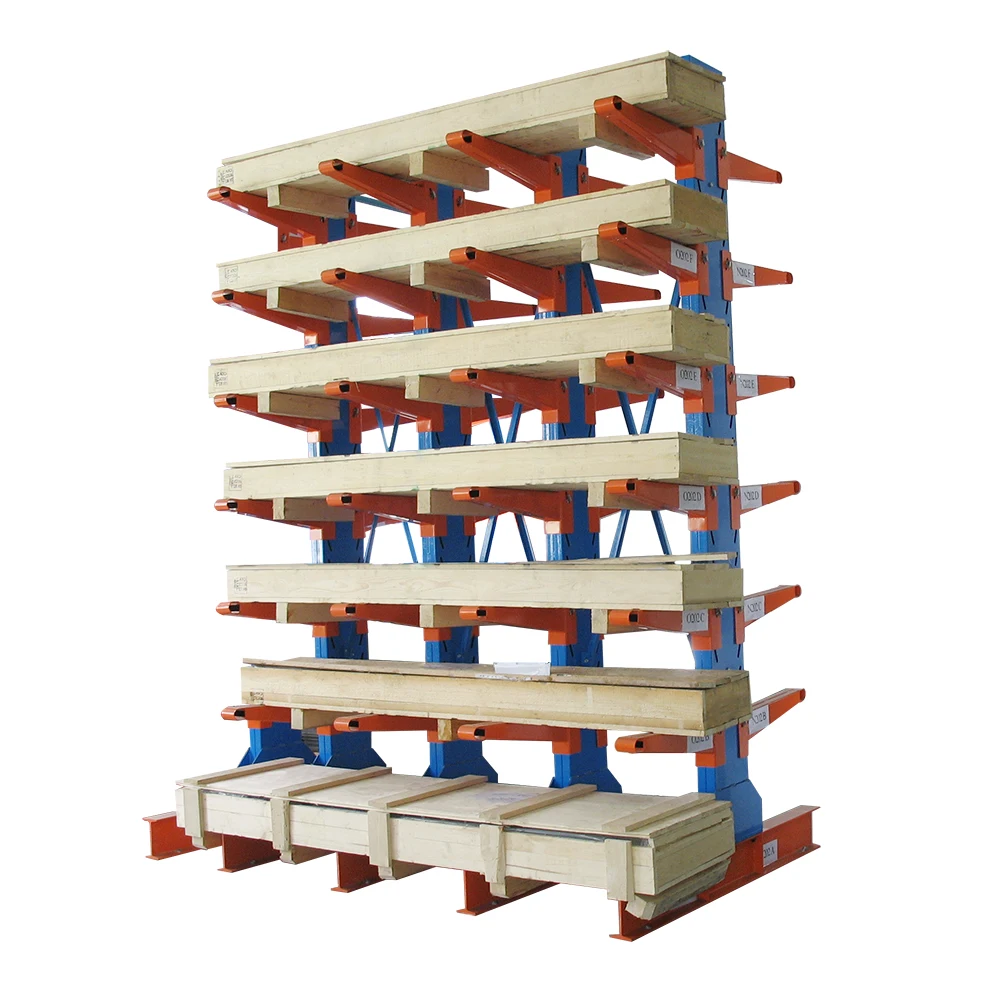

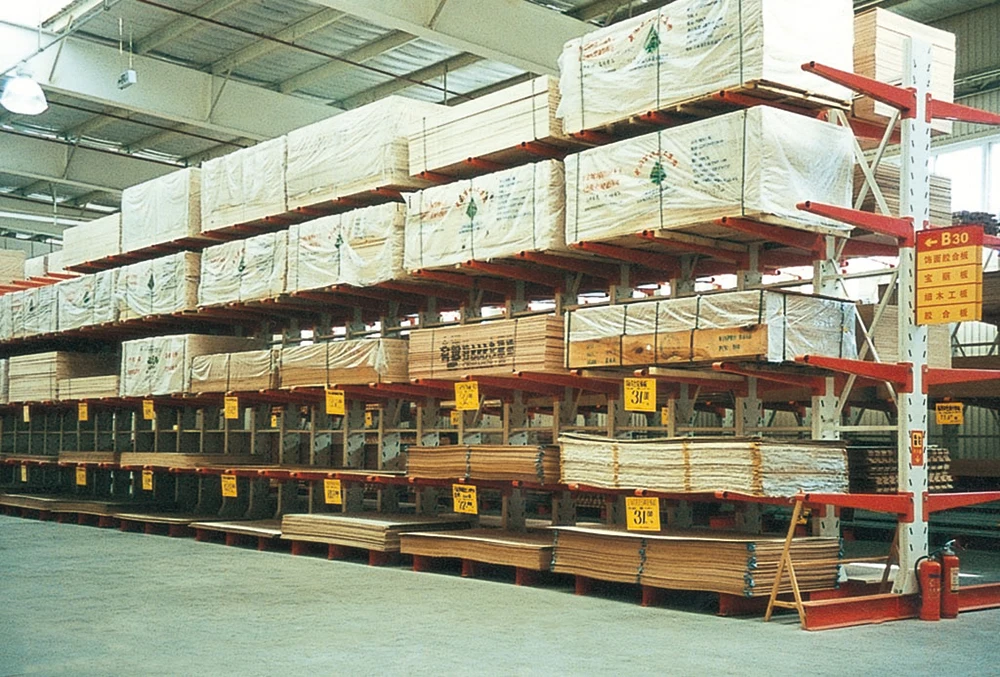

5 layer storage with 4 arm levels double sided cantilever racking for plywood product supermarket storage

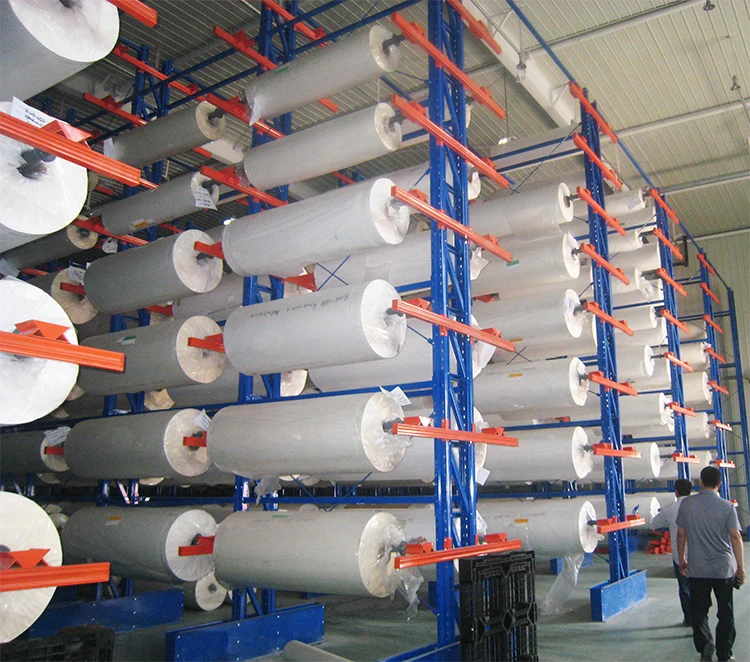

7 layer storage double sided cantilever rack for rolling product storage. The rack is topped with connecting tie, which make the system more stable on structure.
Cantilever racking for pipe material storage.
